Brand: SUNWORTH
Product Origin: China
Power Range: 50W-200W
Material: monocrystalline silicon+Glass+Aluminium alloy
Output:Type-C / USB / DC
Certificate: TuV / CB /CE / IEC

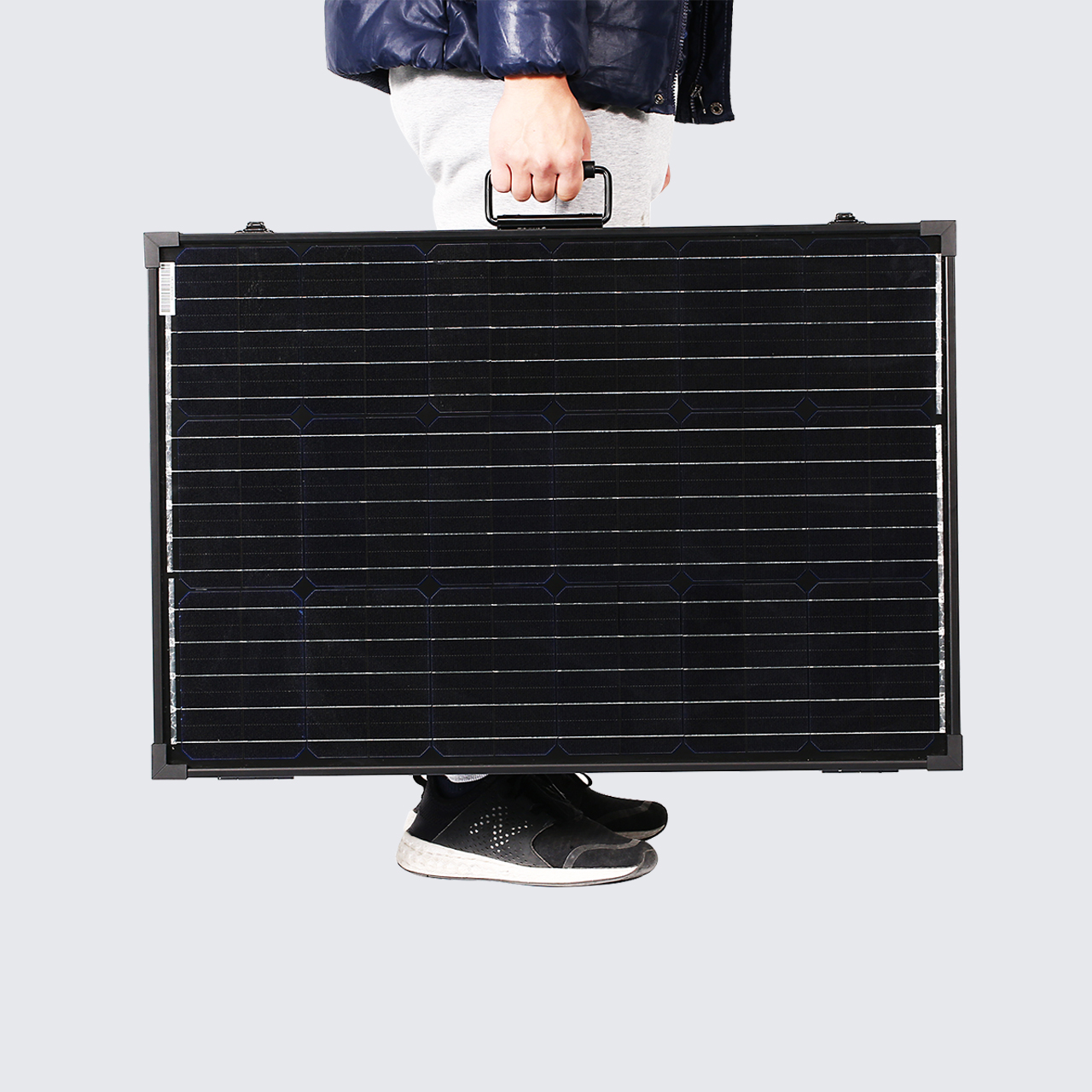

Foldable Solar Panel
Description
Descriptions:
Sunworth has 50W-200W portable solar panels that are lightweight, safe, durable, and easy to install. These foldable solar panels are designed to be compact, allow for efficient energy capture, and are a convenient off-grid solution for those seeking portable renewable energy.
Key Features of Sunworth 50W-200W Portable Solar Panels:
- Excellent performance in low-light environments.
- Alligator clips for easy connection – Custom connectors are also accepted.
- Adjustable and Corrosion resistant-Aluminum frame and bracket
- Durability- Heavy-duty handles and latches
- Protection functions- Surge, Reverse polarity, Overload, Short circuit, etc.
Applications:
- Camping: Take these portable solar panelsanywhere easily, harnessing sunlight for power on the go.
- Outdoor Events: For activities such as camping, hiking, and outdoor events, power lights, mobile phones, video equipment, and more with the convenience of foldable solar panels.
- Off-Grid Life: Utilize 200W portable solar panels for off-grid life, featuring a plug-in design for seamless integration.
- Best Foldable Solar Panelfor Home Use: Offering a reliable and efficient backup power solution during power outage.
| Electrical Characteristics | ||||
| Maximum Power (Pmax) | 50W | 100W | 150W | 200W |
| Max-power Voltage (Vmp) | 18.30V | 18.30V | 18.30V | 18.30V |
| Max-power Current (Imp) | 2.73A | 5.46A | 8.20A | 10.92A |
| Open-circuit Voltage (Voc) | 21.96V | 21.96V | 21.96V | 21.96V |
| Short-circuit Current (Isc) | 2.90A | 5.79A | 8.69A | 11.57A |
| Folded Dimension | 360*395*50mm | 535*565*50mm | 535*725*60mm | 705*725*60mm |
| Open Dimension | 720*395*5mm | 1070*565*25mm | 1070*725*30mm | 1410*725*30mm |
| Weight | 1.1kg | 3.0kg | 4.5kg | 6.5kg |
| Cell Efficiency | 22.00% | |||
| Output power tolerance | ±5% | |||
| Operating Temperature | -40℃~+85℃ | |||
| *STC condition：1000 W/m²,1.5AM and 25℃ cell temperature. | ||||
| Specifications | ||||
| Cell Type | MON 166*166mm | |||
| Front Cover | 3.2mm tempered glass | |||
| Frame Material | Anodized aluminium alloy | |||
| junction Box | IP65 rated | |||
| Cable and Connector: | 4mm2,Length 700mm+MC4 | |||
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
